Take your Dyna Ignition to the next level with the Dyna HD Programming Kit that works with the Dyna 2000 and Dyna 2KI ignition systems.

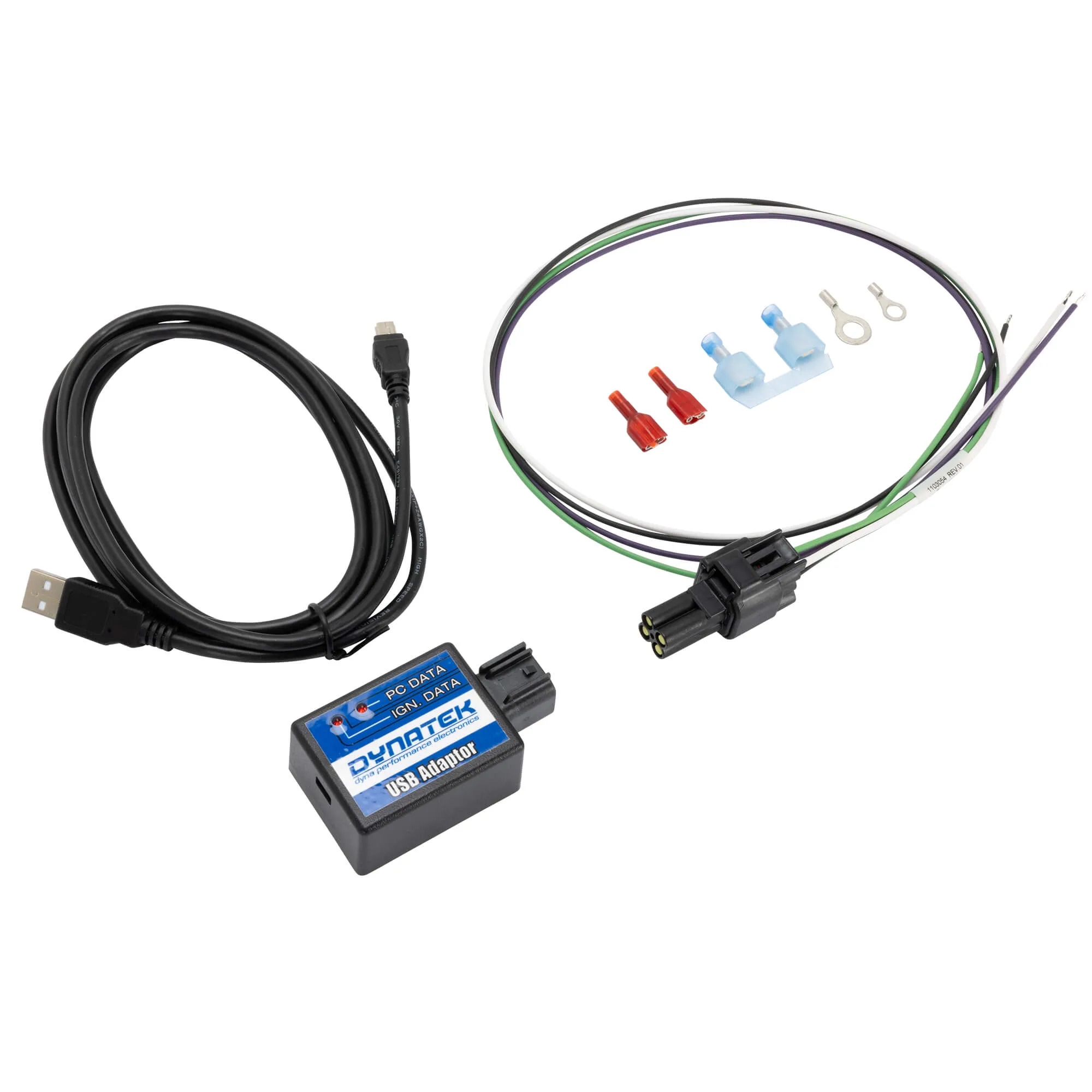

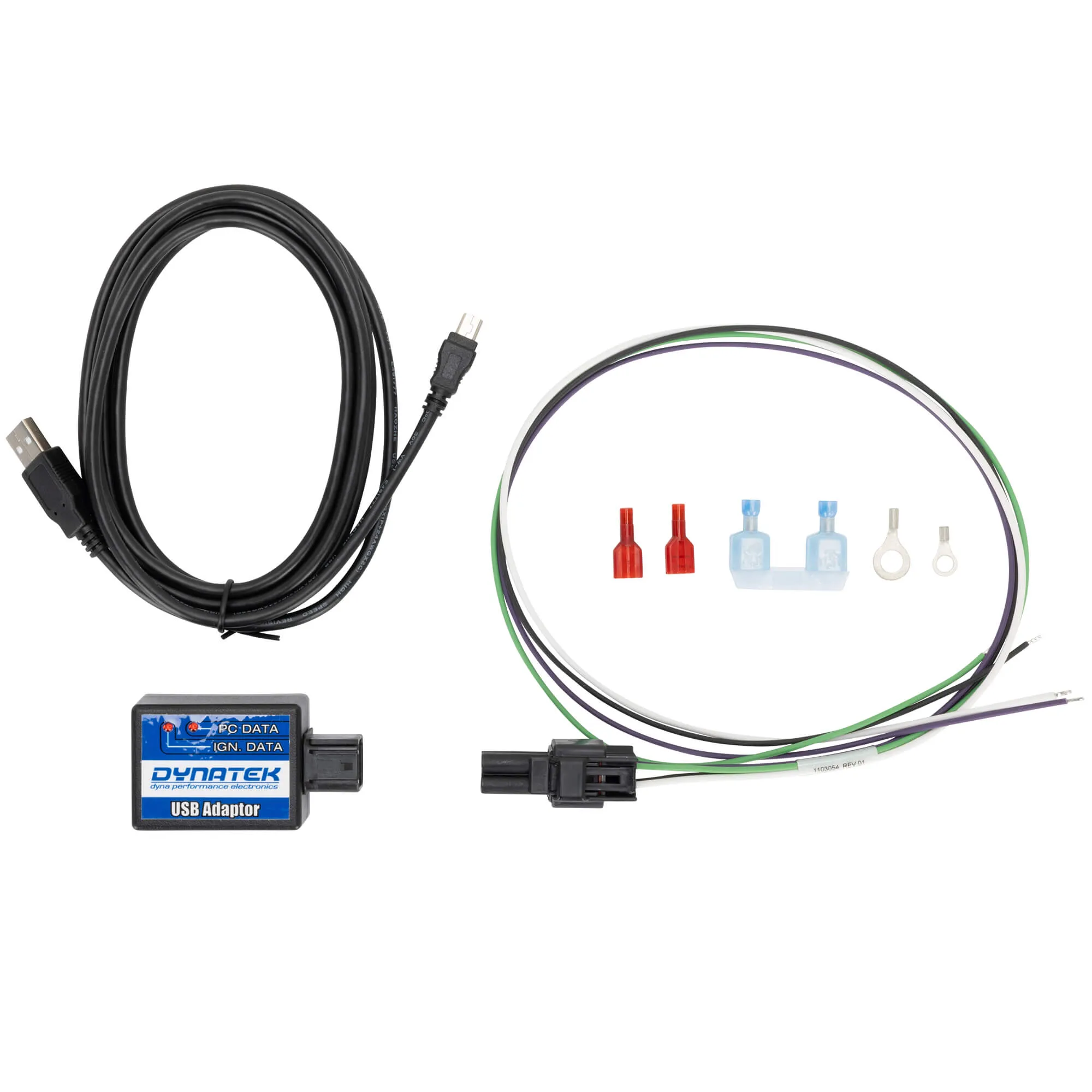

- Consists of appropriate cable to hook to module with all information needed to set up the ignition correctly
- Allows reprogramming of ignition preprogrammed curve with CurveMaker software
- Rev limit, single- or dual-fire, rear cylinder offset and number of dead revs during cranking can also be programmed
- PC programmability makes possible an eight-point, fully definable, wide-open throttle curve and a fully definable part throttle curve, rev limit programmable in 50 rpm steps, programmable dead-cranking revs 0-5, rear cylinder offset, total of /- 10°, programmable rev limiter, security lock out (pin # activated), single or dual fire
- Programming and downloading data and graphs from module requires proper programming kit (includes CD, cables and instructions)

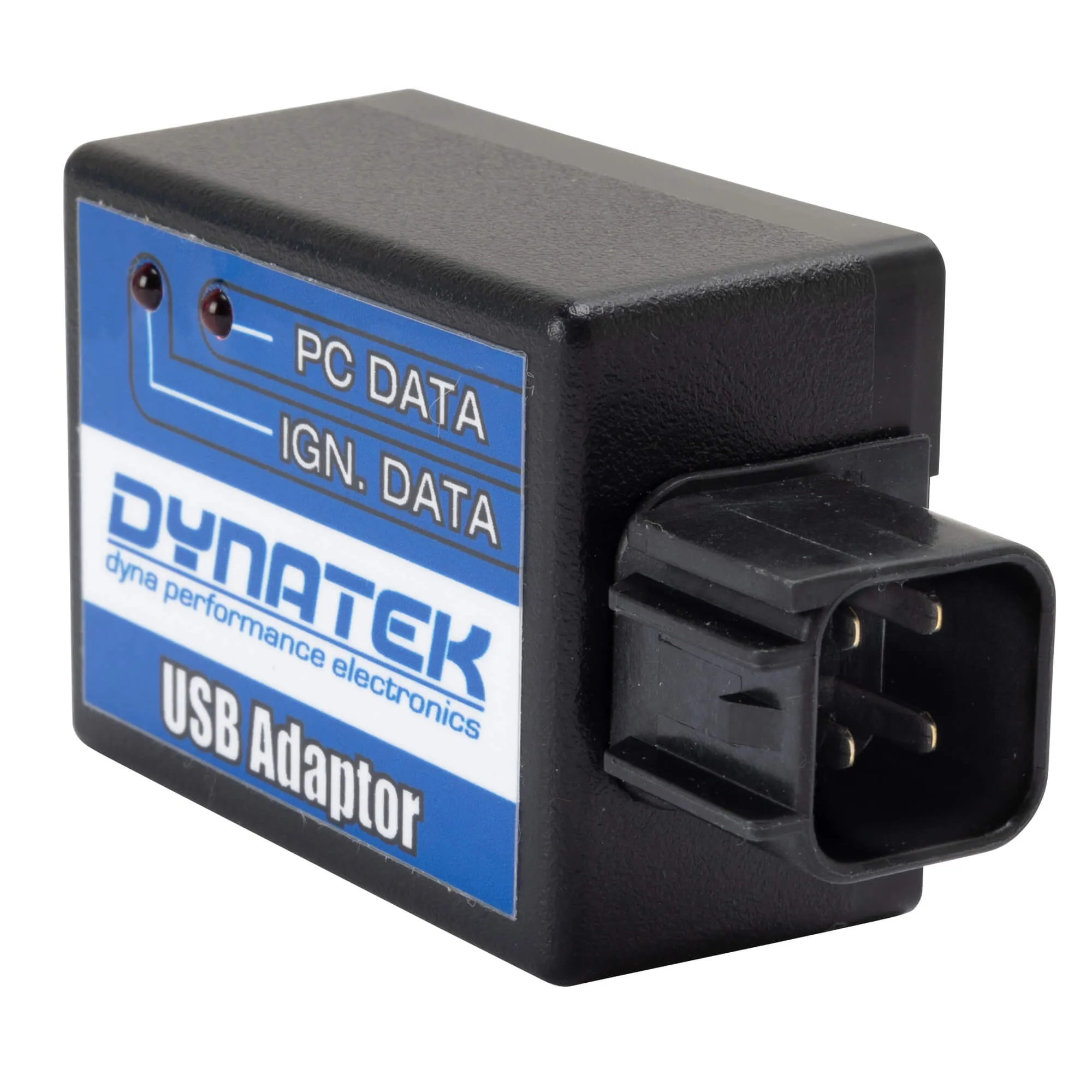

- Pigtail connector enables the user to connect the ignition to a PC to either download recorded info from the ignition or program their own power curves, rev limits, dead revs or rear cylinder off-set timing; connector remains on bike
- Made in the U.S.A.
- Not for fuel-injected models
NOTE: To install a 2000i on a kick start motors will require reprogramming the dead revs back to zero (0). Out of the box, the 2000I has 3 dead revs like a stock Harley-Davidson System. This is also a benefit for high compression motors using an electric starter. The kick must not start on the compression stroke (sensor in the window on the cup). Stopping ‘in the window’ will execute the soft turn off. The leading AND trailing edges of the window must be seen by the 2000i to make a spark. That will require a harness to reprogram it you would need Dynatek part # DIPK-1 to reprogram it
